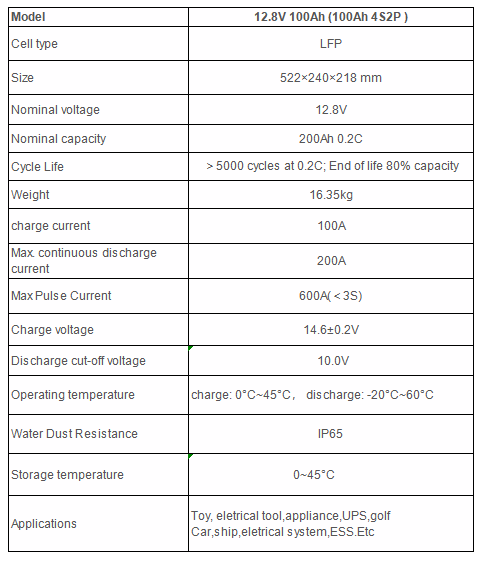

Model 12.8V 100Ah (100Ah 4S2P )

● Cell type    LFP

● Size    522×240×218 mm

● Nominal voltage    12.8V

● Nominal capacity    200Ah 0.2C

● Cycle Life    ＞5000 cycles at 0.2C; End of life 80% capacity

● Weight    16.35kg

● charge current    100A

● Max. continuous discharge current    200A

● Max Pulse Current    600A(＜3S)

● Charge voltage    14.6±0.2V

● Discharge cut-off voltage     10.0V

● Operating temperature    charge: 0°C~45°C， discharge: -20°C~60°C

● Water Dust Resistance    IP65

● Storage temperature     0~45°C

Applications ：UPS,golf Car,ship,eletrical system,ESS.Etc
